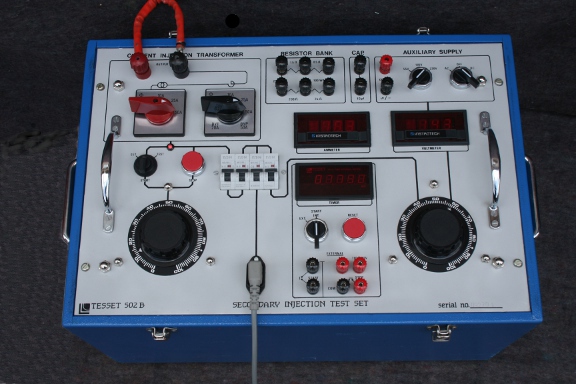

TESSET 502

FEATURES:

SET facility practically eliminates the possibillty of damaging relay while adjusting the current.

Built in choke for sinusoidal current waveform and improved control when testing electro-mechanical relays.

Built in Timer for measuring relay tripping time. Operates from normally open or normally closed contacts.

Built in auxiliary supply for energizing electronic relays, trip coils etc, controlled by seperate variable transformer.

SPECIFICATIONS

Supply voltage:		230 V AC 50 Hz
Current Injection Transformer:		(Choke switched to bypass)


		MAXIMUM CURRENT
RANGE	MAXIMUM VOLTS	CONTINUOUS CURRENT	1 MIN ON 3 MIN OFF	30 SEC ON 3 MIN OFF	10 SEC ON 2.5 MIN OFF
2 A	220 V	3,5 A	7 A	12	16
5 A	120 V	5 A	10 A	15	20
10 A	60 V	10 A	20 A	30	40
25 A	24 V	25 A	50 A	75	100
50 A	12 V	50 A	100 A	150	200


CHOKE RATINGS
		RANGE	MAXIMUM CURRENT	(5 Minutes)
		2 A	2.6 A
		5 A	6.5 A
		10 A	13.0 A
		25 A	32.5 A
		50 A	65 A



AUXILIARY SUPPLY VOLTAGE
VOLTS AC	AC CURRENT	VOLTS DC	DC CURRENT
0 - 55	4 A	0 - 77	2,0 A
0 - 110	2 A	0 - 155	1,0 A
0 - 220	1 A	0 - 311	0,5 A


VOLTS OUTPUT	Pk - Pk RIPPLE	CURRENT	Pk - Pk RIPPLE	CURRENT
50	10%	650 mA	5%	290 mA
110	5,9%	1,0 A	5%	800 mA
220	1,6%	500 mA	1%	250 mA

Ammeter:		3 1/2 digit True RMS. responding Accuracy: 0,5% of reading + 3 digits Linearity: 0,05% Temperature coefficient: 30ppm/^oC typ.

Voltmeter:		3 1/2 digit True RMS. responding Accuracy: 0,5% of reading + 2 digits Linearity: 0,05% Temperature coefficient: 30ppm/^oC typ.

Timer:		Crystal timebase microprocessor controlled. Autoranging: 99,999; 999,99 and 9999,9 seconds. Accuracy: 1 digit Frequency error: 75ppm Temperature coefficient: 25ppm from 0 - 40 ^oC.

Capacitor:		10 microfarad 440 V AC


Resistors	2 K ohm	-	220 mA	-	100 W
	200 ohm	-	0,7 Amp	-	100 W
	20 ohm	-	2,2 Amp	-	100 W
	1,5 ohm	-	8 Amp	-	100 W
	0,5 ohm	-	14 Amp	-	100 W
