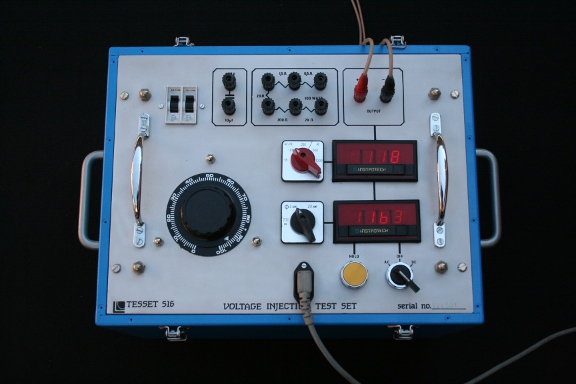

TESSET 516
FEATURES:
- Isolated voltage output of:
0 - 55 V: 0 - 110 V: 0 - 220 V: 0 - 500 :or 0 to 1000 V AC
0 - 77 V: 0 - 155 V: or 0 - 311 V DC with smoothing.
The ranges are selected by switches. - True 3 1/2 digit ammeter with 0 - 199,9 mA ; 1,999 A and
19,99 A ranges a.c or d.c. - Average responding 3 1/2 digit 0 - 1200 volt voltmeter for correct mag curve results.
- "HOLD" pushbutton to hold the reading on the voltmeter and ammeter simultaneously for magnetisation curves. This is useful where the supply is poor e.g from generators.
- Built in capacitor and resistors for phase shifting the voltage output.
- Can be used in conjunction with the 512 current injection set to form a compact and easy to carry system.
- True RMS 3 1/2 digit
Ranges: 199,9 mA, 1,999 A and 19,99 A a.c or d.c
Accuracy: 1 % of reading + 2 digits.
Linearity: 0,05%
Temperature coefficient: 30ppm/oC.
Protection: 10 A continuous on any range. - Average responding 3 1/2 digit.
Range: 1200 V a.c or 400 volts d.c.
Accuracy: 0,5% of reading + 2 digits.
Linearity: 0,05%
Temperature coefficient: 30ppm/oC. - Five 100 watt resistors are brought out onto
binding posts on the front panel.
Values 0,5 1,5 20 200 2000 ohms Current 14,0 8,0 2,2 0,7 0,22 Amperes - A 10 µF 440 V A.C capacitor is connected to binding posts on the front panel.
- The test set is supplied in a robust powder coated aluminium enclosure with outside dimensions of 420 x 325 x 410.
- The test set is guaranteed for one year against defects in material and workmanship under normal conditions of use.
| TECHNICAL SPECIFICATIONS | |||||
| Supply Voltage: | 220 V 50 Hz AC | ||||
| Auxiliary Voltage Supply: | |||||
| VOLTS AC | CURRENT AC | VOLTS DC | CURRENT DC | ||
| 0 - 55 | 7 A | 0 - 77 | 3,5 A | ||
| 0 - 110 | 3,5 A | 0 - 155 | 1,7 A | ||
| 0 - 220 | 1,8 A | 0 - 311 | 0,9 A | ||
| 0 - 500 | 0,8 A | ||||
| 0 - 1000 | 0,4 A | ||||
| OUTPUT VOLTS |
RIPPLE Pk-Pk |
CURRENT | RIPPLE Pk-Pk |
CURRENT | |
| 50 | 10% | 0,65 A | 5% | 290 mA | |
| 110 | 5,9% | 1,0 A | 5% | 800 mA | |
| 220 | 1,6% | 0,5 A | 1% | 250 mA | |
| Ammeter: | |
||||
| Voltmeter: | |
||||
| Resistors: | |
||||
| Capacitor: | |
||||
| Enclosure: | |
||||
| Weight: | Approximately 26 Kg. | ||||
| Guarantee: | |
||||
Since our policy is one of continued product improvement the manufacturer reserves
the right to supply products which may differ slightly from the above.
